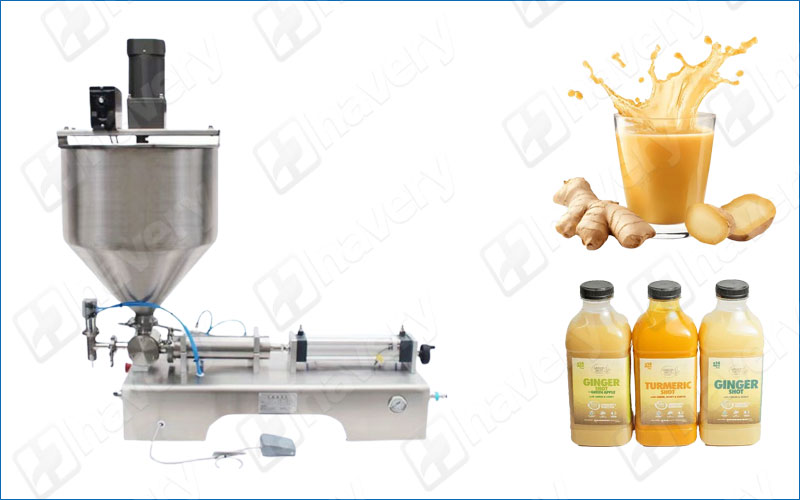

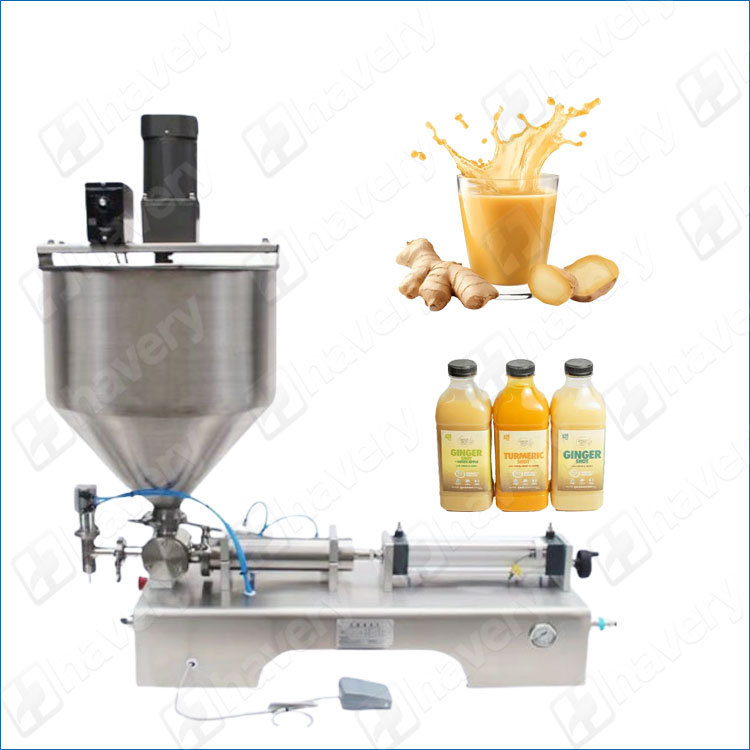

Commercial Ginger Juice Pneumatic Liquid Filling Machine

描述

The Ginger Juice Liquid Filling Machine is a highly efficient filling machine designed specifically for fluid beverages such as ginger juice. It utilizes a pneumatic drive and is suitable for medium- to large-scale production environments, quickly and accurately filling ginger juice to a preset volume into bottles, cans, tubes, or other containers. This machine can be integrated into beverage production lines, integrating with front-end ginger juice preparation, filtration, and sterilization equipment and back-end labeling, capping, and packaging equipment to facilitate efficient, large-scale production of ginger juice products.

In the ginger juice industry, ginger juice typically exhibits certain viscosity, temperature sensitivity (possibly requiring hot or cold filling), and high hygiene requirements. Therefore, this pneumatic liquid filling machine has been specifically optimized in terms of material, structure, sealing, control accuracy, and ease of cleaning to meet the unique demands of ginger juice production.

Pneumatic Liquid Filling Machine Working Principle

The basic operating principle of the Commercial Ginger Juice Pneumatic Liquid Filling Machine can be summarized as follows (combining the principles of mainstream pneumatic piston filling machines in the industry with the specific requirements of ginger juice filling):

Pneumatic Piston Drive
The machine utilizes a cylinder and piston assembly. When compressed air enters the cylinder, it drives the piston, which in turn moves ginger juice in or out of the connecting channel, achieving quantitative filling. Seals are installed between the piston and cylinder to maintain tightness and repeatable positioning accuracy.

Three-Way or Multi-Way Valve Control
During piston movement, valves (such as three-way valves or multi-way directional valves) are switched to control the flow direction, allowing ginger juice to flow from the feed tank into the cylinder (intake phase) and then from the cylinder into the bottle (discharge phase). Valve switching is typically controlled by air-operated valves or solenoid valves, ensuring accurate switching and fast response.

Closed-Circuit Filling and Anti-Drip Design
To prevent dripping or backflow of ginger juice during the filling process, the filling port often utilizes a gate valve, check valve, or anti-drip nozzle. Near the end of the filling process, valves are switched or slowed to buffer the flow rate, thereby reducing foaming and backflow.

Control System and Feedback Verification
The machine is equipped with a PLC (Programmable Logic Controller) or touchscreen human-machine interface for setting parameters such as filling volume, speed, interval, and delay. Some high-end models may also be equipped with level sensors, weight detection systems, or closed-loop feedback to correct filling errors in real time, ensuring consistent volume in each bottle of ginger juice.

Cleaning and CIP (Cleaning-in-Place) Design
To meet food hygiene requirements, the filling machine’s internal piping, valves, and cylinders typically feature quick-release designs and smooth, no-dead-corner structures for easy cleaning. Some equipment supports CIP (Cleaning-in-Place) cleaning, allowing cleaning and disinfection without disassembling the equipment.

Linkage and Synchronized Operation
Across the entire ginger juice production line, the filler can be synchronized with the front-end ginger juice filtration, sterilization, heating/cooling, and mixing systems, as well as the back-end capping, labeling, and packaging equipment, achieving complete automation through signal linkage.

In summary, the Commercial Ginger Juice pneumatic filling machine can complete the quantitative filling of ginger juice drinks efficiently, stably and hygienically through pneumatic piston + valve control + precision control system + good cleaning structure.

Ginger Juice Filling Machine Advantages

Adapts to the viscosity and characteristics of ginger juice. Ginger juice often contains fibers, fine suspended matter, or slurries, making standard liquid filling machines prone to clogging and dripping. This machine’s piston valve design and anti-drip nozzle are ideal for ginger juice, ensuring more stable production.

High cleanliness and low contamination risk. The quick-release design reduces the risk of contamination during manual assembly and disassembly. The stainless steel material is corrosion-resistant and acid- and alkali-resistant, perfectly suited to the acidic properties of ginger juice.

Flexible adjustment and adaptability to various bottle sizes. By replacing the fixture, nozzle, and adjustable bracket, this machine can quickly adapt to filling different bottle sizes and shapes (glass, plastic, and flexible tubes), providing ultimate flexibility.

High automation and labor cost savings. Connecting to the upstream ginger juice preparation line and the downstream capping and labeling line enables continuous automated production, reducing manual intervention and improving production efficiency and stability.

Juice Filling Machine Features

High-Precision Pneumatic Piston Dosing Filling
A pneumatic cylinder drives the piston, combined with high-precision scale adjustment or feedback control, achieving extremely low filling errors (±0.5% or better).

Food-Grade Stainless Steel + No-Dead-Angle Design
All parts that come into contact with the ginger juice are made of 304/316L stainless steel, with smooth, polished interior surfaces and no dead angles, ensuring hygiene and easy cleaning.

Adjustable Filling Speed/Delay/Buffer Function
A deceleration or buffer function is provided at the end of the filling process to prevent backflow, foaming, or tailing of the ginger juice. The filling speed, start delay, and end-of-fill control are adjustable.

Liquid Filling Machine Benefits

Improved Production Efficiency and Capacity
Reduced single-bottle filling time and stable operation increase overall production capacity several-fold, especially for medium- to large-scale ginger ale beverage plants.

Reduced defect rates and raw material waste
High-precision filling, anti-drip design, and automatic error correction reduce losses caused by overfilling, underfilling, backflow, and dripping.

Reduced cleaning and maintenance time
The quick-release mechanism makes daily cleaning faster, facilitating efficiency improvements during frequent product changeovers (different recipes, different bottle sizes).

Improved product hygiene and quality consistency
Ginger ale is filled in a highly clean environment, ensuring consistent volume, taste, and appearance in every bottle, enhancing brand trust and market competitiveness.

Conclusion

The Commercial Ginger Juice Pneumatic Liquid Filling Machine is a highly efficient, precise, hygienic, and flexible filling machine custom-designed for the ginger juice industry. Its core focus is on optimizing materials, sealing, control, and cleaning, taking into account the viscosity and hygiene-sensitive characteristics of ginger juice. Its pneumatic piston drive, adjustable filling capacity, quick-release mechanism, adaptability to multiple specifications, and automated linkage deliver multiple benefits, including increased production efficiency, reduced defect rates, simplified maintenance, and enhanced product consistency. Furthermore, supporting customer case studies, certifications, and test data further enhance customer confidence.

If you are planning to introduce or upgrade your ginger juice production line, please leave a message online or contact us today. We can provide detailed technical specifications, adaptation options, operation videos, and a quote for this machine. Let’s work together to create a higher-quality, more efficient filling solution for your ginger juice brand!
